Signal Lines are flexible, high-performance cryogenic cables engineered to bring wide-band RF connections from room temperature down to the cold stage of a cryogenic system. Designed using Delft Circuits’s Cri/oFlex® strip line technology, they offer a reliable, high-density path for general I/O and high-frequency signals in quantum computing and low-temperature experiments.
Whether constructed with superconducting NbTi or high-conductivity silver (Ag) materials, Signal Lines combine durability, broad frequency performance, and low thermal load, making them well suited for a range of cryogenic applications.
Key Applications
- General RF input/output to cryogenic cold stages
- Dedicatedreadout for superconducting qubit, spin qubit and single photon detector
- Cryogenic experiments and materials research
Key Features
- Wide frequency band: DC to 18 GHz with 50 Ω impedence
- High density solution: 8 channel per flex

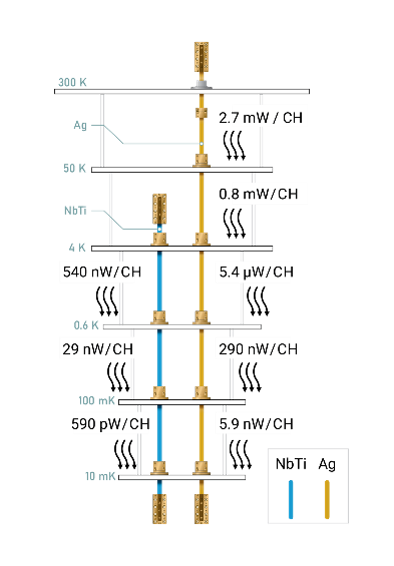

- Low loss: 3 dB/m for silver flex and 1.5 dB/m for NbTi flex at 6 GHz in superconducting stage at 4K
- Low crosstalk: equal level far end crosstalk of -100 dB at 6 GHz
- Ease of installation: snap fit interconnector design
- Cryogenic performance: thermalize time constant of 0.28 ms, twice as fast as coaxial setup
- Specialized package: comes with integrated filters design for microwave readout
- Flexibility: Cri/oFlex design with high flexibility, wide range of length from 300 mm to 1200 mm
- Scalability: comes in compact kit KF25 with 8 channels and up to 256 channels in 108 mm port assembly
Technical Highlights
- Flex material strip line design with high flexibility and high-density channels
- Superconducting NbTi platform for low loss transmission
- Filtering integrated into the flex to reduce mechanical strain
- Thermalization by clamping with increases surface area
Configuration options
- Integrated filtering elements:Attenuators, low pass filters, infrared filters
- Length variation: comes in 300 mm, 500 mm, 700 00mm, 1000 mm, 1200 mm option
- Comparable with a wide range ofcryostats, including Bluefors, Maybell, FormFactor, Oxford Instruments, LeidenCryogenics and Kiutra
- Comes in many packages forscalability:
- KF25: 8 to 16 channels with SMAand SMP connectors
- KF40: 8 to 32 channels with SMA and SMP connectors, 32 to 64 channels with HD SMP and HD SMPM port
- ISO-K63: 32 to 96 channels withHD SMP and HD SMPM port
- Ø 108 mm port: 32 to 256 channels with HD SMP and HD SMPM port
Discover Cri/oFlex lines yourself
Ready to experience the performance of Signal Lines? Request a live demonstration, download detailed datasheets, or contact our team to discuss a customized configuration for your system. Delft Circuits is here to help you achieve exceptional results with precision cryogenic connectivity.
